Product details:

C875 C879 C877 Escalator Handrail C Type For Ot

Part number C875 C879 C877

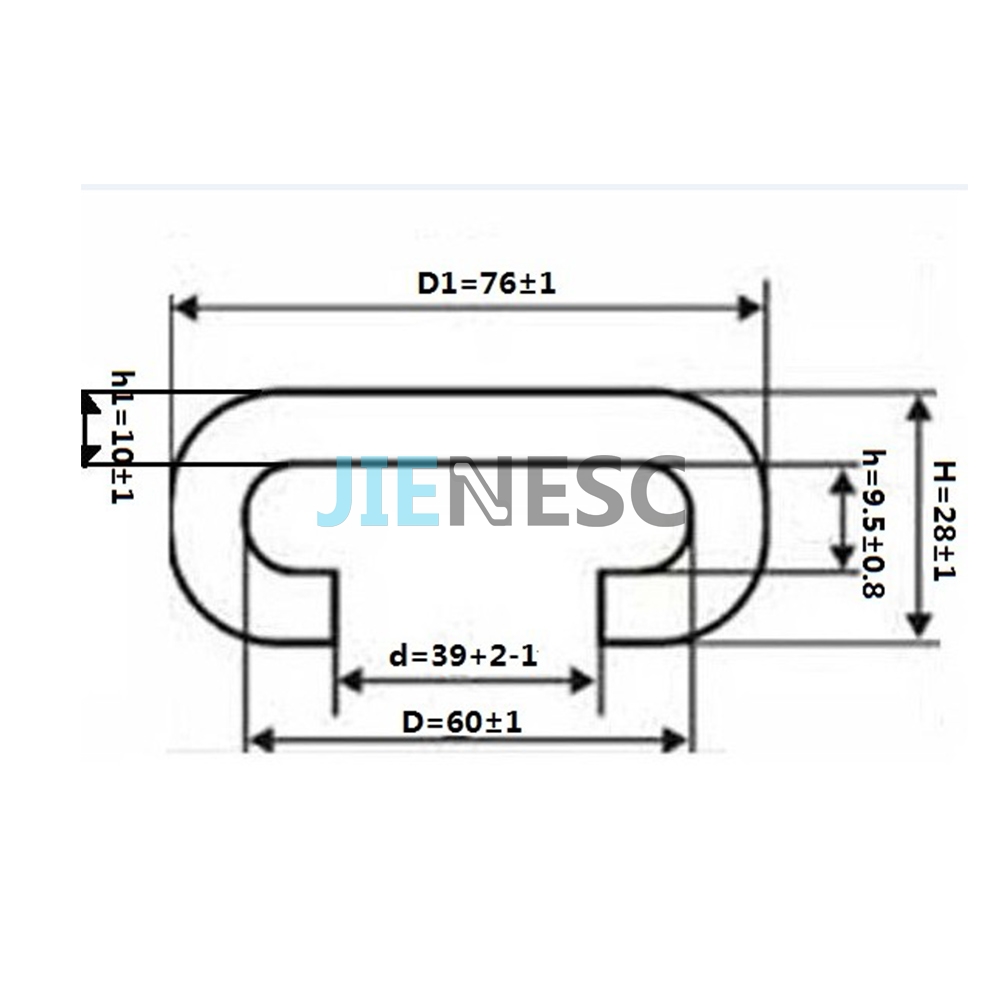

Escalator handrail drawing:

Escalator Handrail: Structure, Materials and Replacement Solutions

What Is an Escalator Handrail

An escalator handrail is a continuously moving loop installed along both sides of an escalator, designed to provide passengers with a stable grip for balance and safety.
It is a synchronized system component that must move in line with the escalator steps to ensure safe and comfortable operation.
Handrails are typically available in:

• C type

• V type

Based on materials:

• Rubber (SBR) handrail – widely used, cost-effective

• TPU handrail – more durable, better appearance, longer lifespan

-TPU is a thermoplastic material, which allows it to fully wrap the steel cord layer, with only a sliding layer required inside.
-For replacement projects, TPU is recommended when higher performance is required.

Escalator Handrail Structure

A standard escalator handrail consists of 5 layers:

1. Cover Layer

• Rubber (SBR) or TPU

• Provides grip and wear resistance

2. Reinforcement Layer (1st)

• Nylon + polyester fabric

• Ensures dimensional stability and tension control

• Prevents steel cord exposure

3. Tension Layer (Steel Cord)

• Core load-bearing structure

• Low elongation, high strength

4. Reinforcement Layer (2nd)

• Enhances structural stability

5. Sliding Layer

• Reduces friction and heat

• Ensures smooth movement

Color and Customization

• Black – standard and most widely used

• Custom colors – available upon request (extra cost applies)

How to Choose the Right Handrail

• High-traffic areas → high durability

• Outdoor use → UV resistance

• Commercial projects → balance of aesthetics and performance

-TPU is recommended for long-term replacement performance.

Escalator Handrail Price Guide

With over 20 years of industry experience, we have deep insight into global supply chains and product quality.
Typical market pricing:

Premium Global Quality

• $20–30/meter

High-Quality China Standard

• $15–25/meter

Maintenance Market Standard

• $10–20/meter

Maintenance Challenges & Solution

Common issues:

• Long lead time for custom handrails (around 15 days)

• Urgent replacement requirements

• High air freight cost for full-length handrails

Solution: On-site Splicing & Vulcanization

We provide professional Escalator handrail splicing materials and equipment.

Process:

1. Order long-length handrail rolls

2. Ship by sea

3. Cut locally

4. Splice and vulcanize on site

Advantages:

• Shorter lead time

• Lower logistics cost

• More flexibility

• Reduced inventory pressure

Vulcanization is critical
It directly affects:

• Joint strength

• Service life

• Operational stability

Why Choose Us

• 20+ years of experience in escalator handrail industry

• Customized solutions based on customer needs

• Authorized distributor of multiple brands

• Strong purchasing power with competitive pricing

• Own production line ensuring stable quality and supply

MEASURE THE HANDRAIL LENGTH
If you don’t know the correct length of the handrail for your replacement order, you have to measure the handrail length on site.

Before the measurement take the following points in consideration:
•      Use a long measuring tape (3m – 5m) for the measurement.
•      Length measurements are only be taken on straight handrail sections L1.
•      Check the position of the handrail tension device.

How to measure the handrail:
•      Mark the starting point (starting mark) and the end point and measure the length L1.
•      Put the escalator into operation until the mark on the top end reaches the bottom end, where the starting mark was before.
•      Measure and mark the new length L2. It is easier when you always measure the same length.
•      Repeat the procedure until the starting mark appears.
•      The sum of all measurements (L1, L2, L3,… Ln) gives the actual length of your handrail.

Why it´s necessary to check the position of the handrail tension device.
•      If the device is on minimum position you have to add length to the handrail length.
•      If the device is on maximum position you have to reduce the handrail length.
